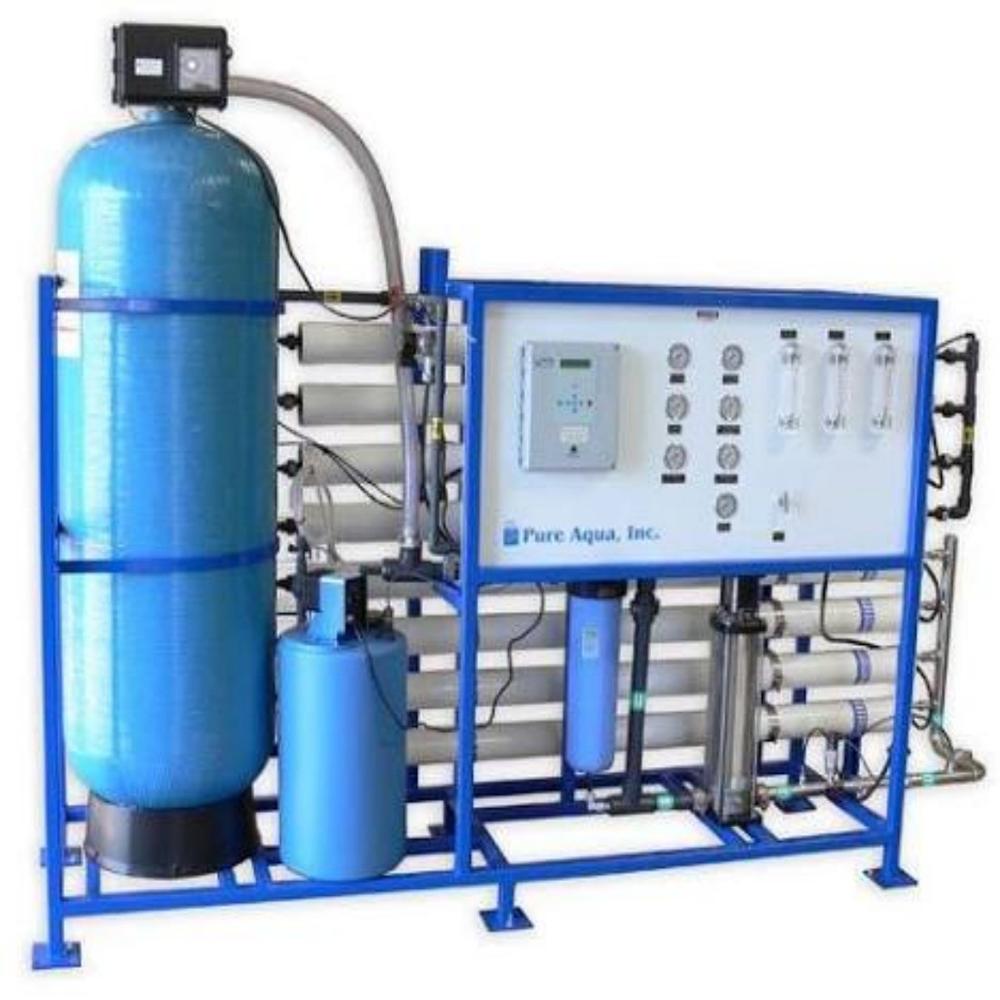

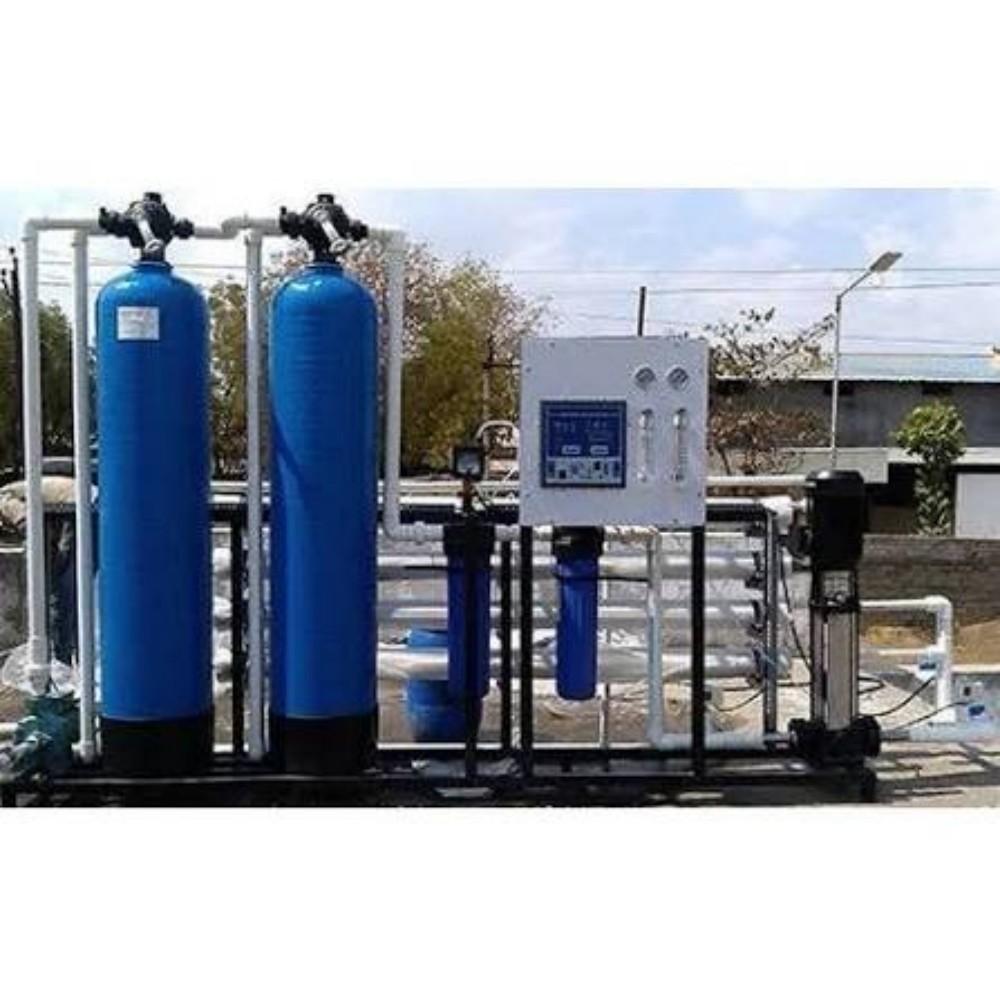

RO PLANT

RO PLANT Specification

Technology
Reverse Osmosis, Pre-filtration, Post-filtration

Features
Automatic Operation, Low Maintenance, Energy Efficient, Compact Design, Corrosion Resistant, Easy-to-Operate

Accessories
High pressure pump, Membranes, Control Panel, Filters, Pressure Gauge, Flow Meter, Piping

Flow Rate
500 to 10,000 Liters Per Hour

Usage
Water Purification, Drinking, Process Water in Factories

Type
RO Plant (Reverse Osmosis Plant)

Material
Stainless Steel and FRP (Fiber Reinforced Plastic)

Storage Capacity
External storage tank (not included)

Purifying Function
Multi-stage Filtration, RO Membrane Filtration, Sediment Removal, Dechlorination

Power
Electric

Valve Type
Multiport Valve

Installation Type
Skid Mounted/Floor Mounted

Temperature
5C to 45C operating range

Water Source
Borewell Water, Tap Water, Saline Water, Brackish Water

Dimension (L*W*H)
Customizable (Typical: 1500 x 800 x 1700 mm)

Voltage
220-380V AC, 50/60 Hz

Weight (kg)
Approx. 120-150 kg (varies with capacity)

Mounting Type
Floor Mounted

Capacity
500 LPH to 10,000 LPH (as per order)

Application
Industrial, Commercial, Institutional, Drinking Water Supplies

Service Support
Available Onsite/Remote

Input TDS Range
Up to 3000 ppm

Pump Material
Stainless Steel

Cleaning System
Manual/Auto Flushing

Control Panel
Digital/Manual with Automation

Feed Pressure
7-15 kg/cm2

Rejection Rate
Up to 98% TDS Removal

Recovery Rate
Up to 60% (depending on feed water)

Membrane Type
Polyamide Spiral Wound Element

Inlet/Outlet Connection Size
1" to 2" BSP/NPT

About RO PLANT

Experience the illustrious RO PLANT, a blue-ribbon solution dominating the water purification market. In demand across industries, this must-have system is now on sale, engineered for superior performance. Featuring a 60% recovery rate and 98% TDS rejection, it expertly manages feed water up to 3000 ppm. Constructed with stainless steel and FRP for enduring reliability, the plant boasts digital/manual controls for automation and efficiency. Its energy-efficient, low-maintenance design ensures cost savings, while onsite and remote support secure a seamless user experience. Ideal for commercial, industrial, and institutional needs.

Versatile Application Areas for Diverse Needs

The RO PLANT stands out in varied application areas such as industrial manufacturing, commercial complexes, institutions, and drinking water supplies. Its adaptable design supports usage at process plants, factories, schools, hospitals, and large residential buildings, purifying water directly at the site of application. Suitable for installation on multiple application surfaces, whether floor mounted or skid mounted, the RO PLANT accommodates diverse site requirements while delivering clean, safe water for multiple consumption and process uses.

Reach and Delivery: Domestic & Export Markets

Our RO PLANTS cater to a wide domestic market, shipped promptly across major cities and industrial hubs with precise packing & dispatch processes. Products are usually packed in sturdy, export-quality packaging, ensuring safe and damage-free transportation. We estimate timely delivery for both local and international consignments. Our main export markets include Asia, the Middle East, and Africa, allowing distributors, manufacturers, and suppliers worldwide to benefit from our reliable and efficient water purification solutions.

FAQ's of RO PLANT:

Q: How does the RO PLANT achieve such a high rate of TDS removal?

A: The RO PLANT utilizes multi-stage filtration along with advanced polyamide spiral wound RO membranes, enabling it to attain up to 98% TDS removal, even with high input TDS of up to 3000 ppm.

Q: What are the primary uses and benefits of installing this RO PLANT?

A: This RO PLANT is essential for industries, institutions, and commercial centers needing safe, purified water for drinking, process operations, and supply systems. Its automatic operation, low maintenance, and high efficiency make it a cost-effective, dependable choice.

Q: Where can the RO PLANT be installed for optimal performance?

A: The system is designed for on-site installation at factories, commercial buildings, institutions, and drinking water stations. It supports both floor-mounted and skid-mounted setups for flexible deployment.

Q: What is the process for operating and maintaining the RO PLANT?

A: Operation is straightforward-with options for full automation or manual control. For maintenance, the system features auto/manual flushing and easy-access components, minimizing downtime and support requirements.

Q: When can I expect the unit to be shipped after placing an order?

A: After confirming your order and capacity requirements, the RO PLANT will be packed and dispatched promptly. Delivery timelines may vary depending on your location and customization needs, but we strive for timely shipments both domestically and internationally.
